Pyro 5
Shipping calculated at checkout.
Order in the next [totalHours] hours %M minutes to get it between and
Description
ꔷ 1TX & 4RX (1TX & 1RX in box)
ꔷ Range Up to 1300ft (400m) & 0.06 Latency
ꔷ 2.4GHz & 5GHz Dual Band
ꔷ Auto Frequency Hopping
ꔷ Camera Control
ꔷ 5.5-Inch & 1500 nits
ꔷ TX, RX, and Monitor - All in One
ꔷ Precise Image Analysis
ꔷ RTMP Streaming
ꔷ Auto Frequency Hopping
Guaranteed Safe Checkout
Free Shipping Over USD $99
Order before 12:00 p.m., ships within the same business day
Pyro 5
$419.00
Give Me Five
Pyro 5

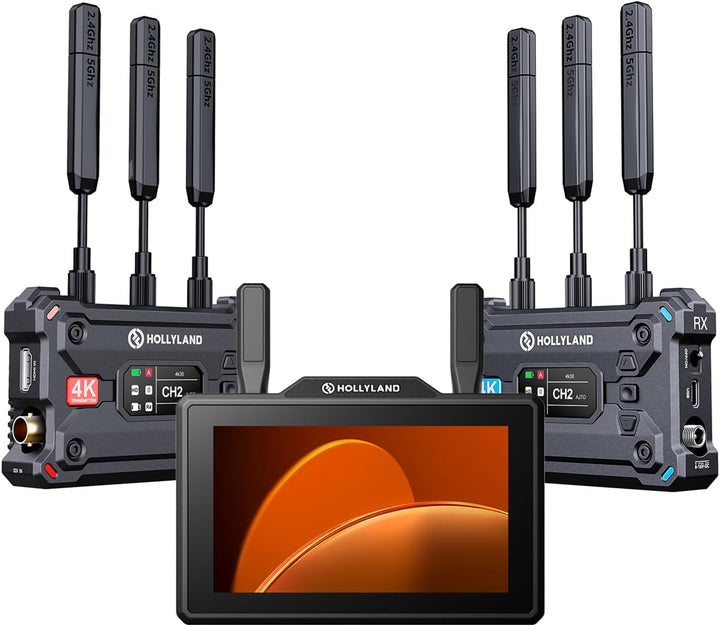

Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance.
With dual-band transmission, 4-way monitoring via Broadcast Mode, direct
camera control, smart channel selection, and a 1500-nit daylight-viewable
screen, it combines multiple functions into one compact tool. Proxy
recording and RTMP live streaming make Pyro 5 more than just a
monitor—it's your multi-tasking hub on set, built to simplify and speed
up every step of production.
5.5 Inches & 1500 Nits
More Than a Screen
Camera Control
1 TX & 4 RX
400m LOS Range
400m LOS Range
Pyro Ecosystem
SDI & HDMI Ports
Dual-Band & Low Latency
Proxy Recording
Pyro Series
With Pyro, you can enhance collaboration and productivity on every
shoot to new heights.
WifiBroadcast Technology
Shoot. Sync. Share.
Pyro 5 is equipped with Auto Frequency Hopping technology, which
constantly scans and monitors the strength of the signal and
interference across various frequency ranges to find the best wireless
channel to use, resulting in a more reliable connection.
Broadcast Mode
In Broadcast Mode, one transmitter connects to up to four receivers
with camera views switching and auto frequency hopping. Ideal for
multi-cam setups, it delivers stable performance at up to 200m
line-of-sight or 100m back-to-back.
Dual-Band Stronger Signal.
Smoother Feeds.
Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5
automatically adapts to changing environments—delivering robust,
interference-resistant video even in signal-heavy locations.
Direct Camera Control.
Just a Tap Away.
Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to
shutter speed, aperture, focus, focus mode, white balance, and ISO,
offering dynamic control over your camera's settings.
ISO
IRIS
SHUTTER
WB
Focus Mode
More Than a Monitor.
Efficient Proxy
Recording.
Efficient Proxy
Recording.
Proxy files can be recorded directly to an SD card or USB drive
while monitoring in real-time. Automatically organized into folders,
proxy files are ready to review or cut. The Proxy files now include
timecode, perfectly synced with your camera for easier, more
accurate editing.
Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with
fast-paced live productions.
Lock Pairing.
When multiple Pyro systems are in use, Lock Pairing ensures each
receiver stays securely connected to its original transmitter—no
signal mix-ups.
1,500 nits
Shoot Bright.
See Brighter.
See Brighter.
The 1500-nit screen stays bright and readable, even in the most
challenging outdoor lighting.
Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which
constantly scans and monitors the strength of the signal and
interference across various frequency ranges to find the best wireless
channel to use, resulting in a more reliable connection.
Smart Channel
Selection
Selection
At startup, the system automatically scans and locks onto the optimal
frequency channel. Channels can also be manually scanned and switched
via the receiver, with visual signal strength indicators for each
frequency.
Take Control of Your
Image Flow.
Image Flow.
Choose between high-fidelity visuals or ultra-low latency—whichever
suits your shoot best.
HD Mode
Delivers stunning clarity with a 12 Mbps bitrate and a
minimum latency of 75ms. Ideal for critical image
monitoring.
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
*All performance figures are from Hollyland laboratory tests and may
vary with real-world conditions
Precision Meets Ease Image Analysis.
Precision Meets Ease
Image Analysis.
Image Analysis.
Advanced image analysis tools—now more accurate, more user-friendly,
and made for fast decision-making on set.
Waveform
Focus Assist
Zebra Pattern
False Clolor
3D LUT
Pyro 5 comes with 5 built-in LUTs and supports custom LUT import.
HDMI & SDI Ports
Connect to What You Need.
Connect to What You Need.
With both HDMI and SDI loopout, Pyro 5 fits seamlessly into a wide
range of production setups.
Built to Feel Good.
Made to Last.
Made to Last.
A dual-injection shell keeps the device light in hand and strong
enough to handle the roughest shoots. The Easy-install antennas make
setup, transport, and storage faster and easier than ever. Every
detail is designed for the field—from the rugged build to the
streamlined setup.
Go Live, Anywhere.
RTMP Streaming
RTMP Streaming
Stream directly to Zoom, YouTube Live, TikTok, and more with the
HollyView App and RTMP support. Just connect a 4G LTE Wi-Fi modem,
enter your stream key, and you're live—no extra setup needed.
Pyro 5
Give Me Five
What's in the Box
Saturn 5 Wireless Transceiving Monitor x1
Easy-Install Short Antenna x2
USB-C OTG Adapter x1
Tempered Glass Screen Protector x1
Quick Guide x1
Warranty Card x1
Packing List Card x1
Specifications
Input Port
Transmitter Mode: HDMI 1.4b + 3G SDI
Receiver Mode: /
Receiver Mode: /
Output Port
Transmitter Mode: Loop-Out HDMI 1.4b
Receiver Mode: HDMI 1.4b
Receiver Mode: HDMI 1.4b
Audio-Video Parameters
Transmitter Mode: Color Depth Capability
Transmitter Mode: Input Audio Format
Transmitter Mode: Output Audio Format
Receiver Mode: HDMI Input: YUV422/YUV444 8BIT
Receiver Mode: HDMI 1.4b 8-Channel
Transmitter Mode: Input Audio Format
Transmitter Mode: Output Audio Format
Receiver Mode: HDMI Input: YUV422/YUV444 8BIT
Receiver Mode: HDMI 1.4b 8-Channel
Antenna
SMA Male
Power Input
DC Input (2.0mm core socket)
Headphone Jack
3.5mm
Upgrade Port
USB-C (USB 2.0 OTG) / SD Card Slot
Screen Size
5.5″ Touchscreen
Screen Resolution
1920*1080 Pixels
Color Gamut
Rec.709
Aspect Ratio
16: 9
Screen Brightness
1,500 nits
Contrast Ratio
1000:1
Power Input Voltage
NPF: 6V~16V
DC-in: 10-18V DC
DC-in: 10-18V DC
Video Processing Technology
Transmitter Mode: Video Bitrate
Transmitter Mode: Video Encoding Format
Receiver Mode: Maximum 12 Mbps
Receiver Mode: H.264
Transmitter Mode: Video Encoding Format
Receiver Mode: Maximum 12 Mbps
Receiver Mode: H.264
Power Consumption
Transmitter <14W
Receiver Mode: <16.5W
Receiver Mode: <16.5W
Net Weigh
≈538g (19oz)
Dimensions
(L×W×): 180x127x45.8mm
Operating Frequency
5.150-5.250GHz
2.412~2.484GHz
5.250-5.350GHz
5.470-5.600GHz
5.600-5.725GHz
5.725-5.850GHz
2.412~2.484GHz
5.250-5.350GHz
5.470-5.600GHz
5.600-5.725GHz
5.725-5.850GHz
Transmit Power
Transmitter Mode: < 23dBm
Receiver Sensitivity
Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm
Transmission Latency
≈60ms (Tested in a laboratory environment with 1080P60 signal
transmission)
Bandwidth
Unicast: 20 MHz Broadcast: 40 MHz
Operating Temperature
- 10℃ - 45℃
Storage Temperature
- 40℃ - 60℃
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
HDMI Loopout/Output
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30
SDI Input
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60
SDI Loopout/Output
1080p50/59.94/60(Level A)
/
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080i50/59.94/60
720p50/59.94/60
/
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080i50/59.94/60
720p50/59.94/60
